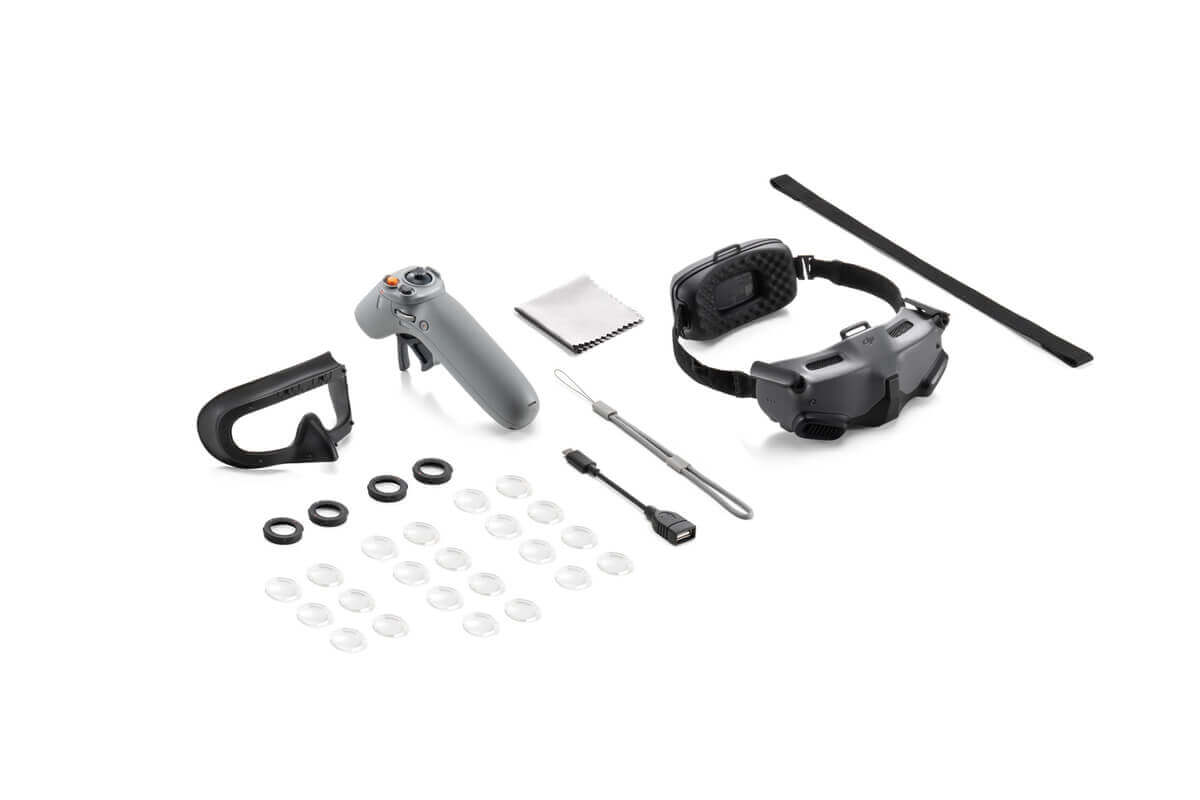

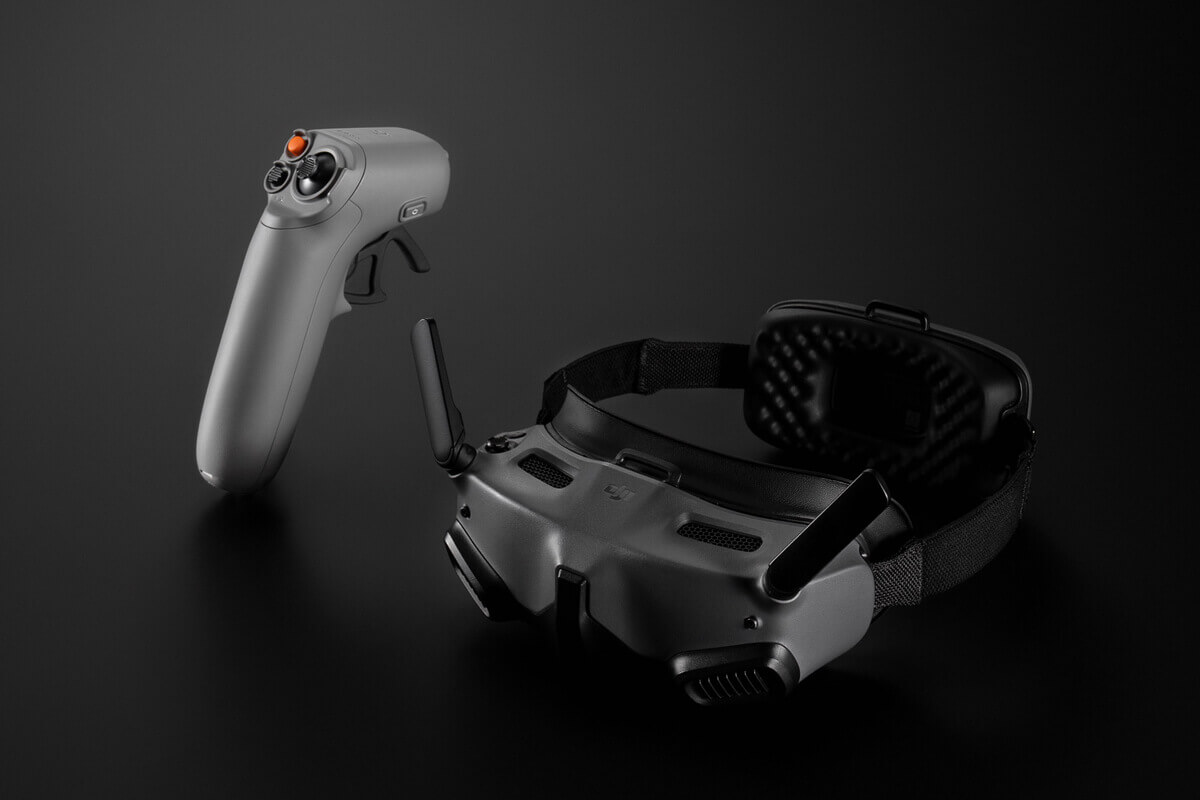

DJI Goggles Integra & DJI RC Motion 2

Goggles

• Model

• RCDS13

• Weight

• Approx. 410 g (battery included)

• Dimensions (L×W×H)

• With antennas folded: 170×104×75 mm With antennas unfolded: 205×104×104 mm

• Screen Size (single screen)

• 0.49-inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• IPD Range

• 56-72 mm

• FOV (single screen)

• 44°

• Video Recording Format

• MOV

• Supported Video Playback Formats

• MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Power Input

• Built-in battery

• Supported SD Cards

• microSD (up to 512 GB)

• Recommended microSD Cards

• SanDisk Extreme U3 V30 A1 32GB microSDXC SanDisk Extreme Pro U3 V30 A1 32GB microSDXC Lexar 1066x U3 V30 A2 64GB microSDXC Lexar 1066x U3 V30 A2 128GB microSDXC Lexar 1066x U3 V30 A2 256GB microSDXC Lexar 1066x U3 V30 A2 512GB microSDXC Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC Kingston Canvas React Plus U3 V90 A1 64GB microSDXC Kingston Canvas React Plus U3 V90 A1 128GB microSDXC Kingston Canvas React Plus U3 V90 A1 256GB microSDXC Samsung EVO Plus U3 V30 A2 512GB microSDXC

Video Transmission

• Video Transmission

• When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft. DJI Avata: O3+

• Operating Frequency

• 2.4000-2.4835 GHz 5.725-5.850 GHz ^{The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.}

• Transmitter Power (EIRP)

• 2.4000-2.4835 GHz: < 30 dBm (FCC) < 20 dBm (CE/SRRC/MIC/KC) 5.725-5.850 GHz: < 30 dBm (FCC) < 23 dBm (SRRC) < 14 dBm (CE/KC)

• Transmission Latency

• 1080p/100fps: as low as 30 ms 1080p/60fps: as low as 40 ms ^{Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.}

• Max Transmission Distance

• When used with DJI Avata or the DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission distance: 10 km (FCC), 2 km (CE), 6 km (SRRC) When used with DJI FPV, DJI Goggles Integra can achieve the following max video transmission distance: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Max Video Bitrate

• 50 Mbps ^{Measured in an open outdoor environment without interference. Actual data varies with operating environment.}

Battery

• Weight

• Approx. 185 g (headband included)

• Dimensions (L×W×H)

• 120×51×71 mm

• Capacity

• 2450 mAh

• Voltage

• 5.6-8.4 V

• Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 17.64 Wh

• Charging Temperature

• 5° to 45° C (41° to 113° F)

• Max Charging Power

• 15 W (charging when powered off)

• Operating Time

• Approx. 2 hours ^{Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.}
