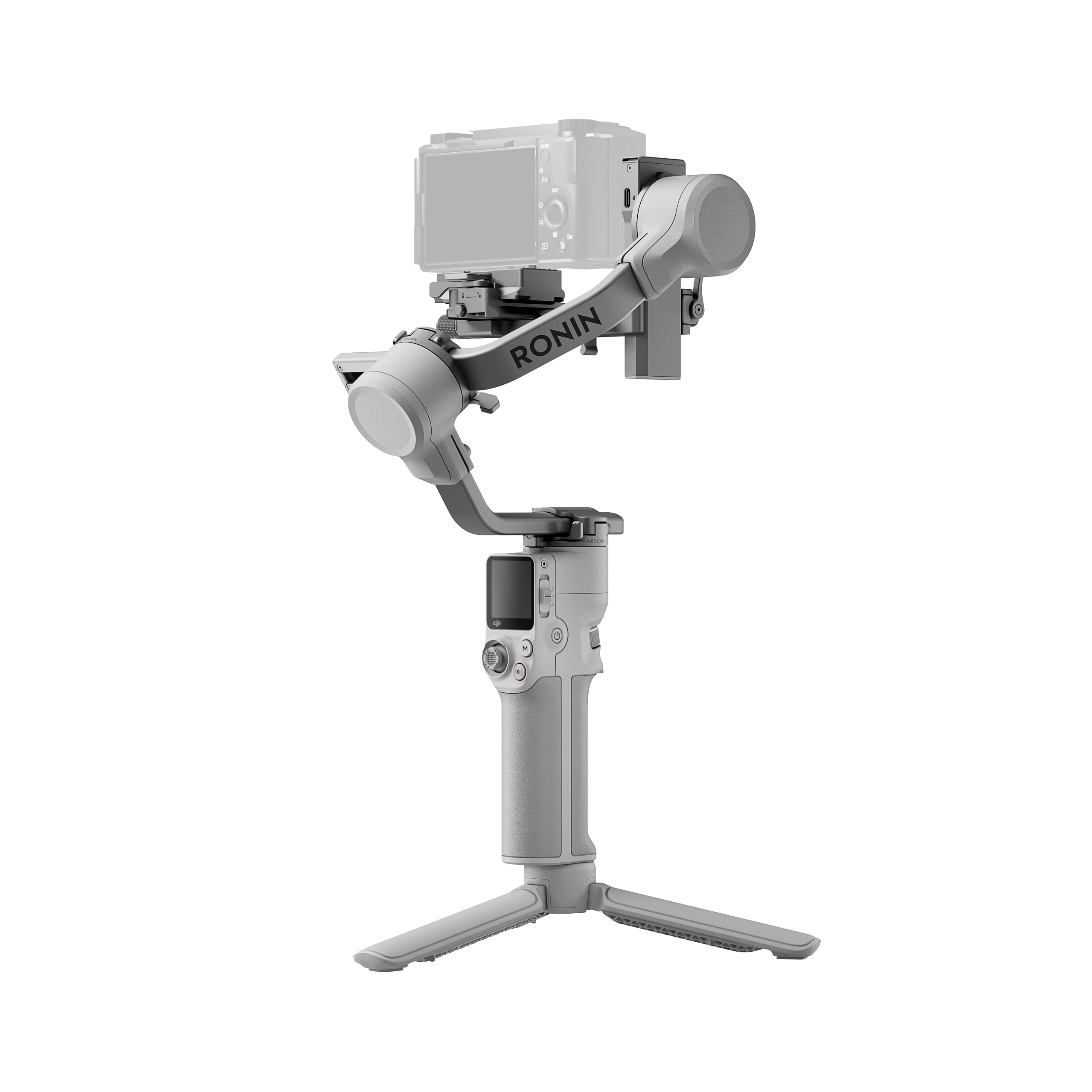

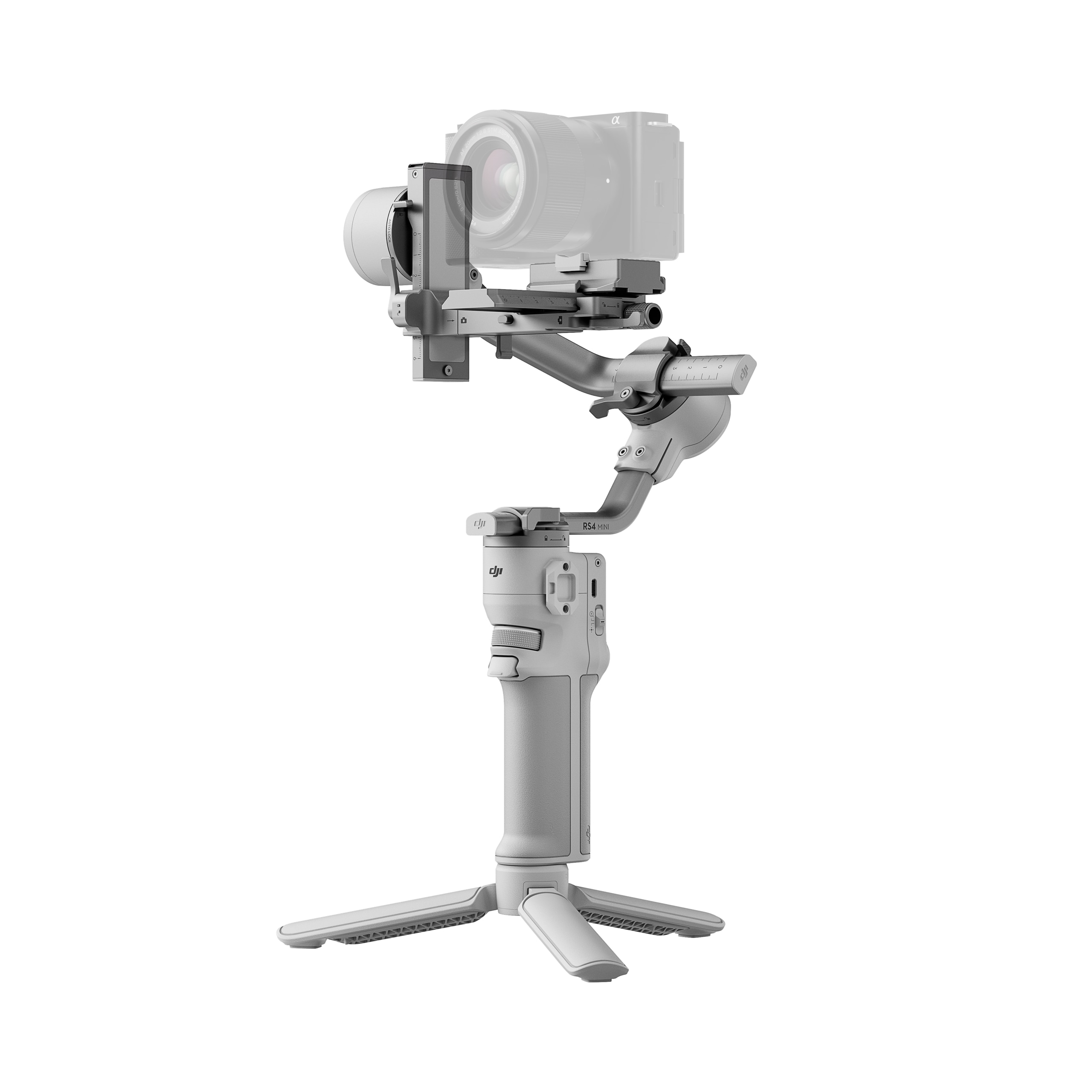

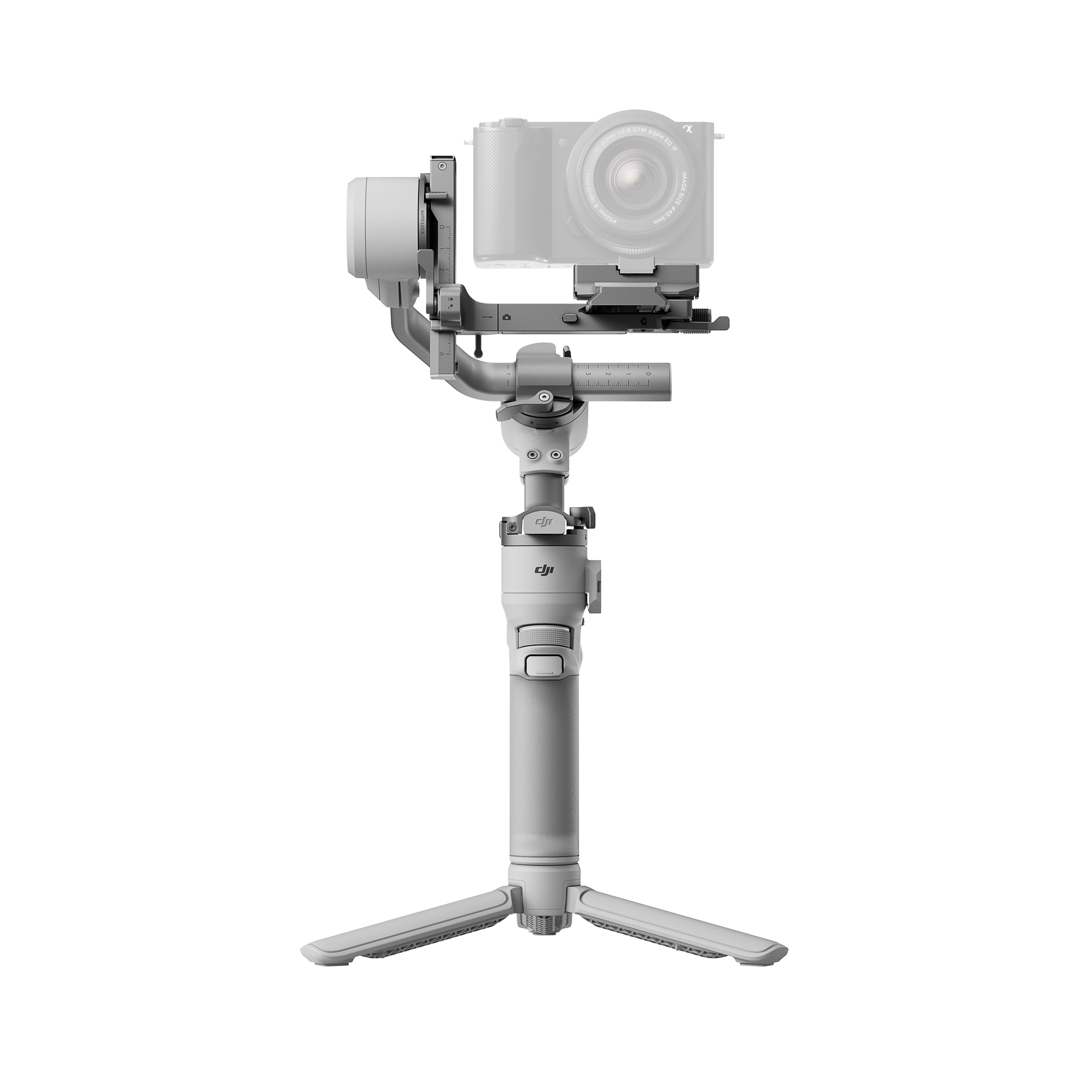

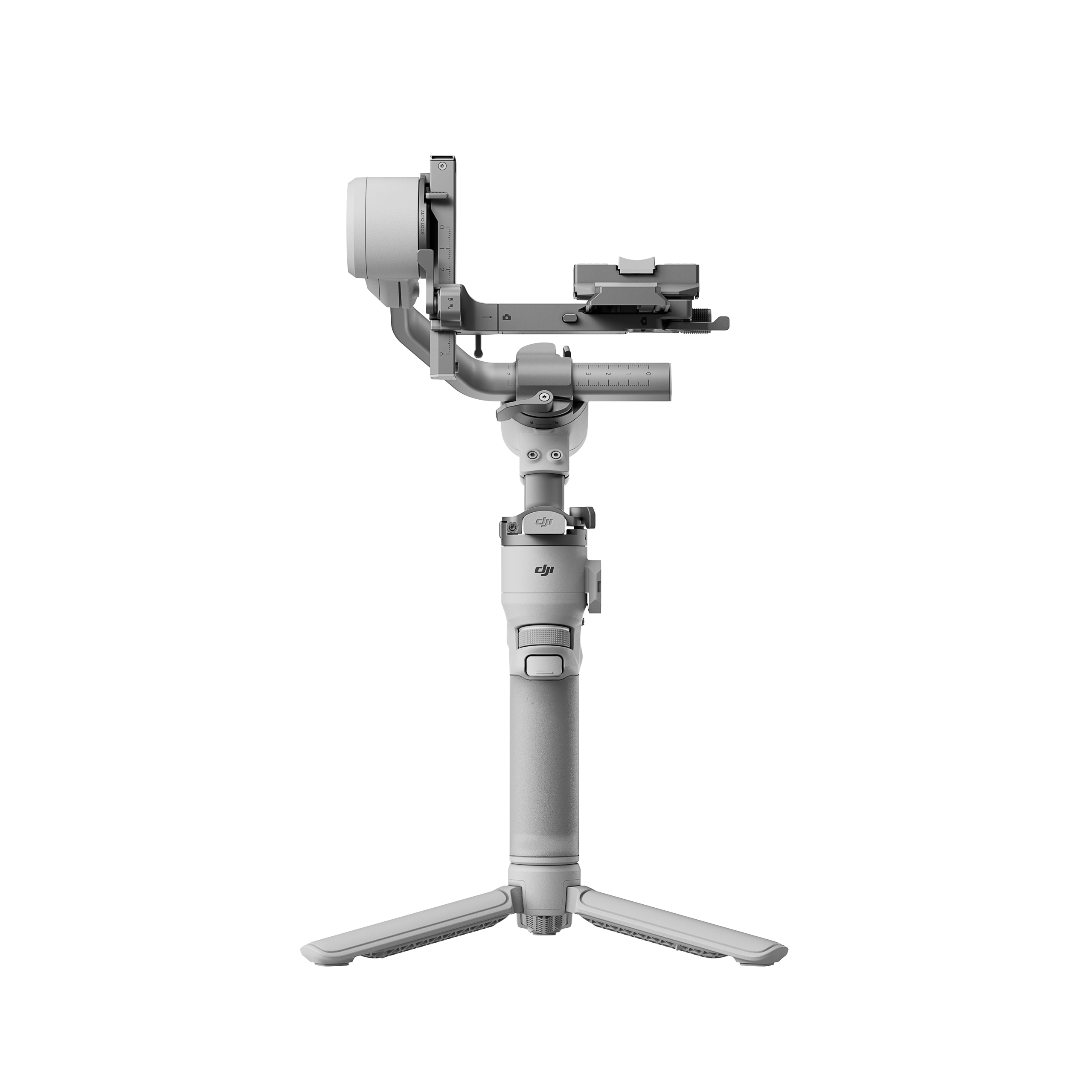

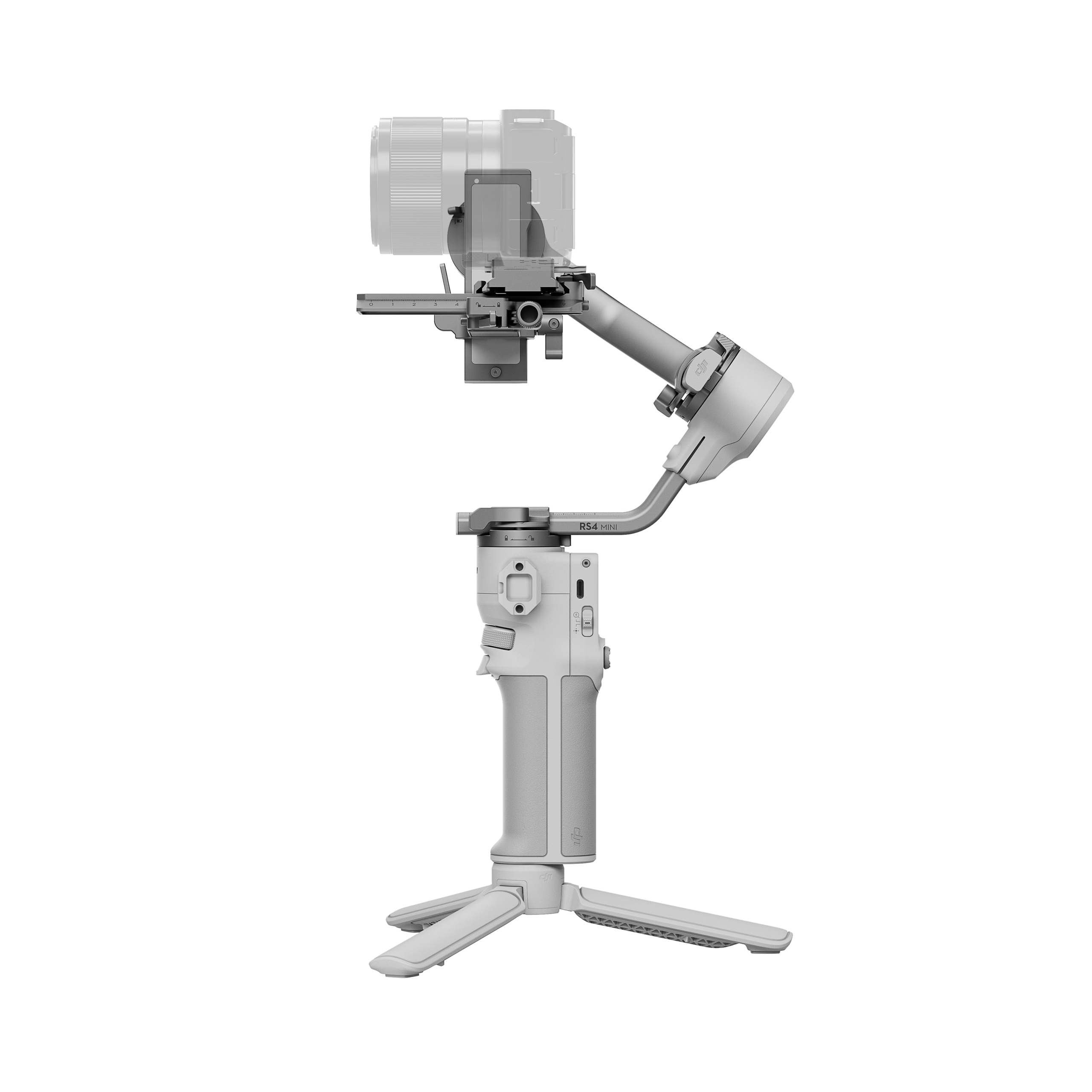

מייצב DJI RS 4 Mini

Peripheral

• Accessory Port

• NATO Port
  1/4"-20 Mounting Hole
  RSS Camera Control Port (USB-C)
  Pogo Pin (compatible with the DJI RS Intelligent Tracking Module)

• Battery

• Model: BHX724-3100-7.2
  Type: LiPo 2S
  Capacity: 3100 mAh
  Energy: 22.32 Wh
  Max Runtime: 13 hours (stationary) *
  Charging Specification: 9 V/2.5 A
  Charging Time: Approx. 1 hour and 50 minutes **
  Suggested Charging Temperature: 5° to 40° C (41° to 104° F)^{* Measured with the equipment in a level and stationary state and the gimbal balanced. When the gimbal is in motion, the operating time will be reduced.
  ** Tested in a 25° C (77° F) environment while using a 30W charger.}

• Connections

• Bluetooth 5.1
  USB-C Charging Port

• Ronin App Requirements

• iOS 14.0 or above
  Android 9.0 or above

• Languages Supported by the Touchscreen

• English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

• Tested Payload

• 0.4-2 kg (0.88-4.4 lbs)

• Maximum Controlled Rotation Speed

• Pan: 360°/s
  Tilt: 360°/s
  Roll: 360°/s

• Mechanical Range

• Pan Axis: 360° continuous rotation
  Roll Axis: -95° to +235°
  Tilt Axis: -110° to +210°

• Axis Locks

• Auto

• Vertical Shooting

• Supported

Mechanical & Electrical Properties

• Operating Frequency

• 2.4000-2.4835 GHz

• Bluetooth Transmitter Power

• < 4 dBm

• Operating Temperature

• -10° to 45° C (14° to 113° F)

• Weight

• Gimbal: Approx. 890 g (2 lbs) (including the Quick-Release Plate and excluding the tripod)
  Extended Grip/Tripod: Approx. 140 g (0.3 lbs)

• Dimensions

• Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate)
  Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate)

Accessories

• DJI RS Intelligent Tracking Module

• Weight: 19 g
  Dimensions: 33.5×17.5×38.5 mm (L×W×H)
  Tracking Distance: 0.5-10 m
  Operating Environment: Illuminance > 20 lux
  Trigger Modes: Gimbal trigger, gesture
  Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment
  Power Consumption: < 1 W
  Operation Temperature: -10 to 45° C (14° to 113° F)
  Mounting Method: Magnetic attachment

• DJI RS 4 Mini Phone Holder

• Weight: 92.5 g
  Dimensions: 50×48×95.15 mm (L×W×H)
