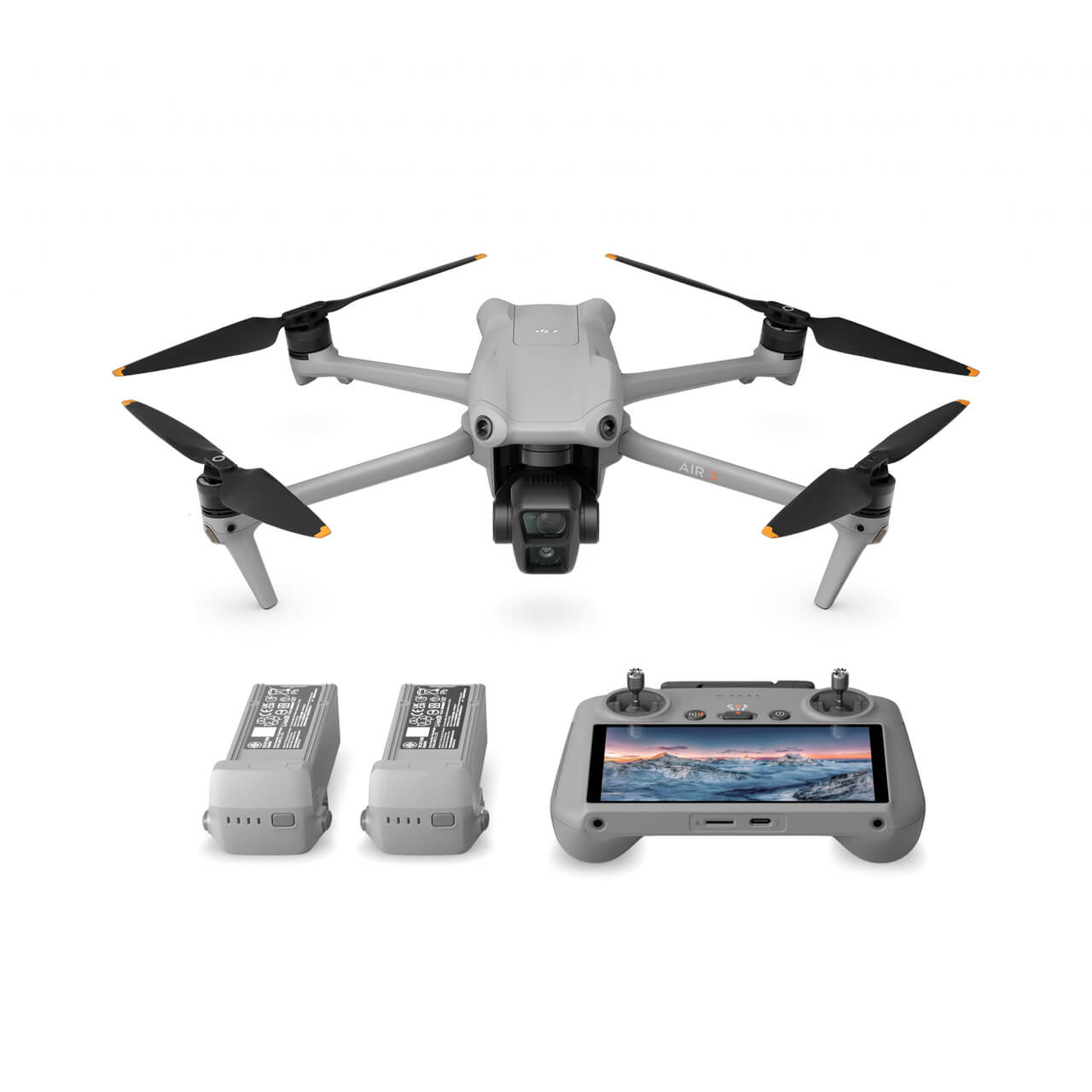

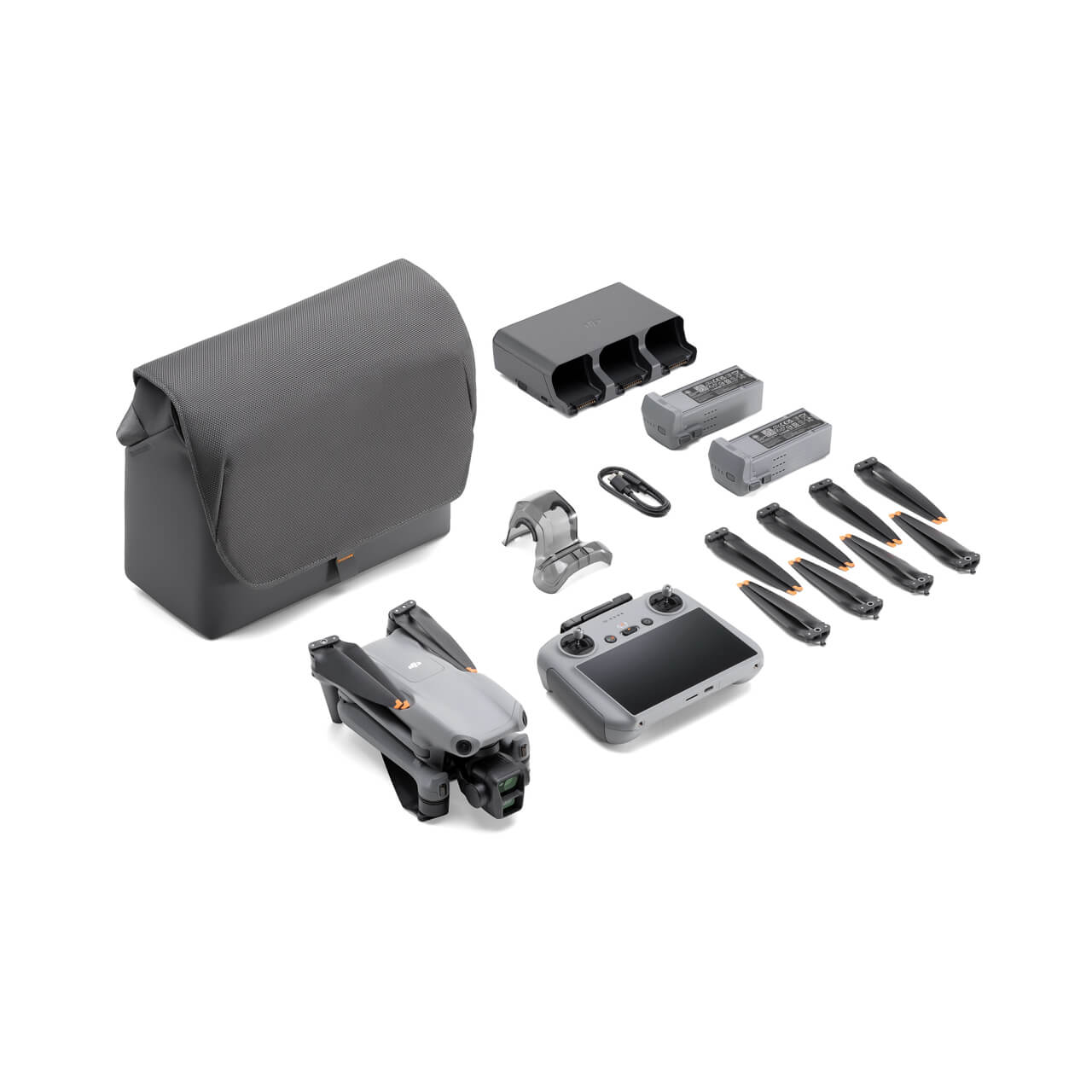

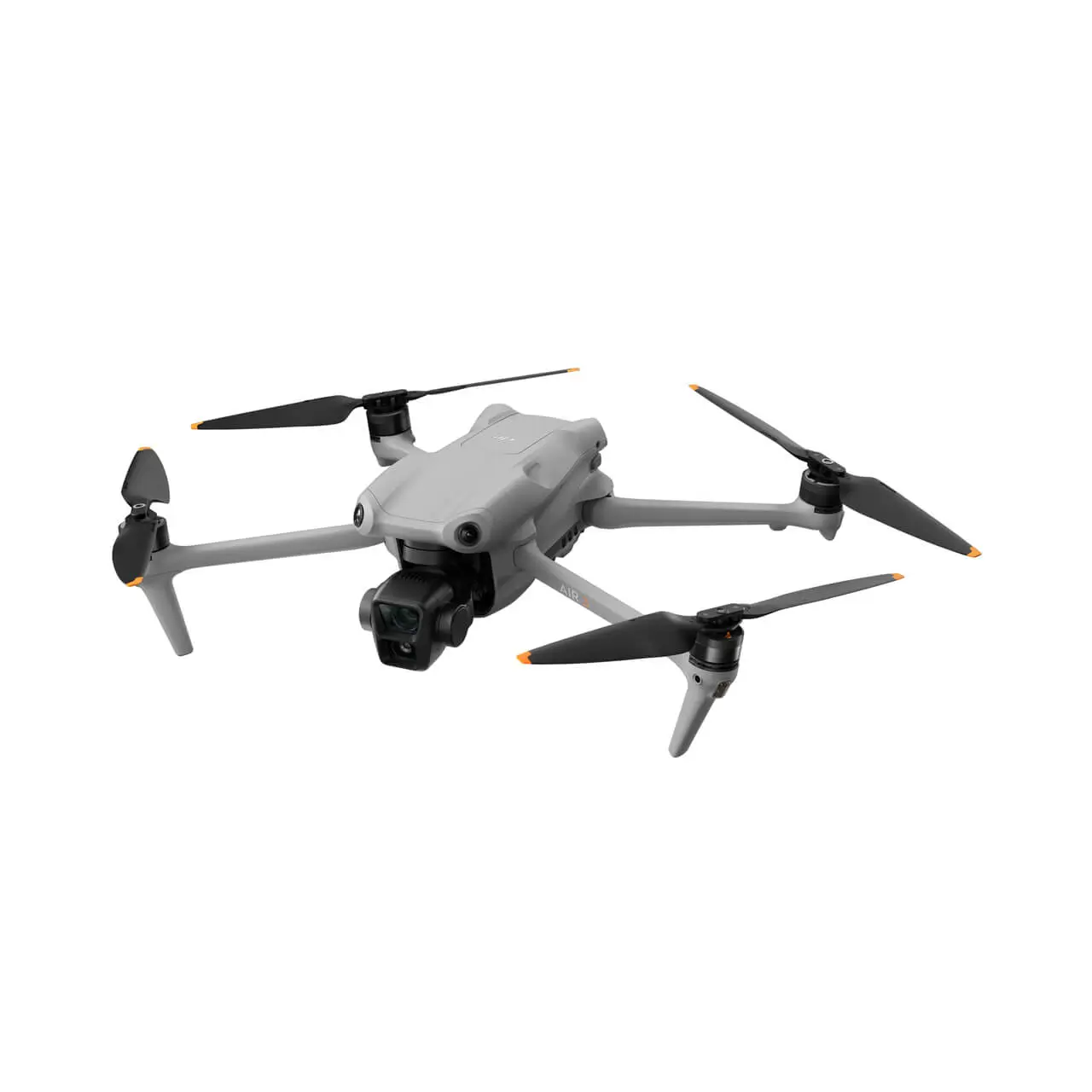

DJI AIR 3 Fly More Combo (DJI RC 2)

Aircraft

• Takeoff Weight

• 720 g

• Dimensions

• Folded (without propellers): 207×100.5×91.1 mm (L×W×H) Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H)

• Max Ascent Speed

• 10 m/s

• Max Descent Speed

• 10 m/s

• Max Horizontal Speed (at sea level, no wind)

• 21 m/s ^{19 m/s in EU regions.}

• Max Takeoff Altitude

• 6000 m

• Max Flight Time

• 46 minutes ^{Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

• Max Hovering Time

• 42 minutes ^{Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

• Max Flight Distance

• 32 km

• Max Wind Speed Resistance

• 12 m/s

• Max Pitch Angle

• 35°

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning)Horizontal: ±0.3 m (with vision positioning) ±0.5 m (with high-precision positioning system)

• Internal Storage

• 8 GB

Camera

• Image Sensor

• Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP

• Lens

• Wide-Angle Camera FOV: 82° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.8 Focus: 3 m to ∞

• ISO Range

• Video Normal and Slow Motion: 100-6400 (Normal) 100-1600 (D-Log M) 100-1600 (HLG) Night: 100-12800 (Normal)Photo 100-6400 (12 MP) 100-3200 (48 MP)

• Shutter Speed

• Wide-Angle Camera 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2 sMedium Tele Camera 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2 s

• Max Image Size

• Wide-Angle Camera: 8064×6048 Medium Tele Camera: 8064×6048

• Still Photography Modes

• Wide-Angle Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 sMedium Tele Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

• Photo Format

• JPEG/DNG (RAW)

• Video Resolution

• Wide-Angle Camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fpsMedium Tele Camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps^{* Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps only supports H.265.}

• Video Format

• MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

• Max Video Bitrate

• H.264/H.265: 150 Mbps

• Supported File System

• exFAT

• Color Mode and Sampling Method

• Wide-Angle Camera Normal: 8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265)Medium Tele Camera Normal: 8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265)

• Digital Zoom

• Wide-Angle Camera: 1-3x Medium Tele Camera: 3-9x

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, pan)

• Mechanical Range

• Tilt: -135° to 70° Roll: -50° to 50° Pan: -27° to 27°

• Controllable Range

• Tilt: -90° to 60° Pan: -5° to 5°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.0037°

Sensing

• Sensing Type

• Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

• Forward

• Measurement Range: 0.5-18 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 72°

• Backward

• Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72°

• Lateral

• Measurement Range: 0.5-30 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72°

• Upward

• Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 72°, Left and Right 90°

• Downward

• Measurement Range: 0.3-14 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 106°, Left and Right 90°

• Operating Environment

• Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 15) Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

• 3D Infrared Sensor

• Measurement Range: 0.1-8 m (reflectivity > 10%) FOV: Front and Back 60°, Left and Right 60°

Video Transmission

• Video Transmission System

• O4

• Live View Quality

• Remote Controller: 1080p/30fps, 1080p/60fps

• Operating Frequency

• 2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz^{5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.}

• Transmitter Power (EIRP)

• 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC)5.1 GHz: < 23 dBm (CE)5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE)

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 20 km CE: 10 km SRRC: 10 km MIC: 10 km^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.}

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference: urban landscape, approx. 1.5-4 km Medium Interference: suburban landscape, approx. 4-10 km Low Interference: suburb/seaside, approx. 10-20 km^{Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: approx. 0-0.5 km Low Interference and Obstructed by Trees: approx. 0.5-3 km^{Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Download Speed

• O4: 10 MB/s (with DJI RC-N2 Remote Controller) 10 MB/s (with DJI RC 2) Wi-Fi 5: 30 MB/s*^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

• Lowest Latency

• Aircraft + Remote Controller: approx. 120 ms ^{Depending on the actual environment and mobile device.}

• Antenna

• 6 antennas, 2T4R

Wi-Fi

• Protocol

• 802.11 a/b/g/n/ac

• Operating Frequency

• 2.400-2.4835 GHz 5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)5.8 GHz: < 20 dBm (FCC/SRRC) < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.2

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 10 dBm

Battery

• Capacity

• 4241 mAh

• Weight

• Approx. 267 g

• Nominal Voltage

• 14.76 V

• Max Charging Voltage

• 17 V

• Type

• Li-ion 4S

• Energy

• 62.6 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• Approx. 80 minutes (with DJI 65W Portable Charger) Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

• Input

• DJI 65W Portable Charger: 100-240 V (AC), 50-60 Hz, 2 ADJI 100W USB-C Power Adapter: 100-240 V (AC), 50-60 Hz, 2.5 A

• Output

• DJI 65W Portable Charger: USB-C 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 AUSB-A 5 V, 2 A DJI 100W USB-C Power Adapter: Max 100 W (total)^{When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.}

• Rated Power

• DJI 65W Portable Charger: 65 W DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

• Input

• USB-C: 5-20 V, max 5 A

• Output (power accumulation)

• Battery Port: 12-17 V, 3.5 A

• Output (charging)

• Battery Port: 12-17 V, max 5 A

• Output (USB)

• USB-C: 5 V, 3 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 4.1 A

• Charging Type

• Three batteries charged in sequence.

• Compatibility

• DJI Air 3 Intelligent Flight Battery

Car Charger

• Input

• Car Power Input: 12.7-16 V, 6.5 A, rated voltage 14 V (DC)

• Output

• USB-C: 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 AUSB-A: 5 V, 2 A

• Rated Power

• 65 W

• Charging Temperature

• 5° to 40° C (41° to 104° F)

Storage

• Recommended microSD Cards

• SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC Lexar 1066x 64GB V30 U3 A2 microSDXC Lexar 1066x 128GB V30 U3 A2 microSDXC Lexar 1066x 256GB V30 U3 A2 microSDXC Lexar 1066x 512GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC Samsung EVO Plus 512GB V30 U3 A2 microSDXC

DJI RC-N2 Remote Controller

• Model

• RC151

• Max Operating Time

• Without charging any mobile device: 6 hours When charging a mobile device: 3.5 hours

• Max Supported Mobile Device Size

• 180×86×10 mm (L×W×H)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• 2.5 hours

• Charging Type

• It is recommended to use a 5V/2A charger.

• Battery Capacity

• 18.72 Wh (3.6 V, 2600 mAh × 2)

• Type

• 18650 Li-ion

• Dimensions

• 104.22×149.95×45.25 mm (L×W×H)

• Weight

• 375 g

• Supported Mobile Device Port Type

• Lightning, USB-C, Micro-USB ^{Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately.}

• Video Transmission Operating Frequency

• 2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz

• Video Transmission Transmitter Power (EIRP)

• 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC)5.1 GHz: < 23 dBm (CE)5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC)
